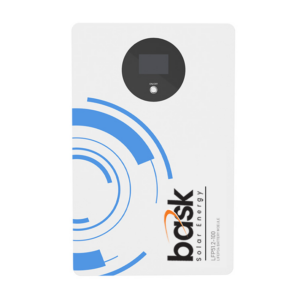

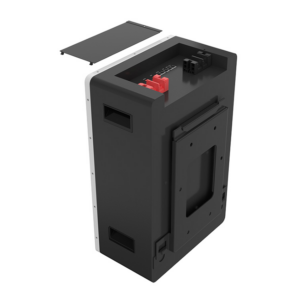

Powerwall 51.2V 100AH LiFePO4 Lithium Battery / Model (W2-ACB)

฿24,900.00

แบตเตอรี่ Bask Powerwall 51.2V300AH คุณสมบัติ ​​พลังงาน…

Category: ,

คำอธิบาย



แบตเตอรี่ Bask Powerwall 51.2V100AH / Model (W2-ACB)

คุณสมบัติ
​​พลังงานสูง 5120wh Lifepo4 แบตเตอรี่ลิเธียมเหล็กโมดูล BMS ในตัว,
วงจรชีวิตยาว 2,000-6,000 เท่า เพิ่มประสิทธิภาพด้านความปลอดภัยและช่วงอุณหภูมิการทำงานที่กว้าง
แรงดันไฟฟ้าและความจุพิกัดคือ 51.2V 100ah แต่โดยทั่วไปเรียกว่า 48V 100ah ในตลาด

คำอธิบาย:
>> แบตเตอรี่ลิเธียม 51.2V 100AH ​​LIFEPO4, วงจรชีวิต 2000-6000,
ประสิทธิภาพด้านความปลอดภัยที่เพิ่มขึ้น, ช่วงอุณหภูมิการทำงานที่กว้าง และประสิทธิภาพที่อุณหภูมิสูง

>> รับประกันคุณภาพ 5 ปี และอายุการใช้งานยาวนานกว่า 10 ปี
>> แบตเตอรี่พลังงานแสงอาทิตย์นี้มีระบบป้องกันอัจฉริยะ ได้แก่: การป้องกันการชาร์จไฟเกิน,
การป้องกันการคายประจุเกิน, การป้องกันกระแสไฟเกิน, การป้องกันการลัดวงจร, การป้องกันอุณหภูมิ
และฟังก์ชันการปรับสมดุล

>> แบตเตอรี่ LIFEPO4 ใช้งานได้กับอินเวอร์เตอร์ไฮบริด 5.5 KW, Pure Sine Wave 5500W
และตัวควบคุมพลังงานแสงอาทิตย์ MPPT 100AH PV Output 500V สามารถโหลดแผงโซลาร์เซลล์ได้มากขึ้น
ใช้อุปกรณ์ของคุณให้มีประสิทธิภาพและเสถียรยิ่งขึ้น

คุณสมบัติแบตเตอรี่

Shell type LFP51.2-100 (W2-ACB)
Available electricity 5.12kWh
Rated capacity 100Ah
Combination mode 16S1P
BMS configuration 16S100A
Rated voltage 51.2V
Operating voltage range 41.6V~58.4V
Rated charge and discharge current 50A
Peak current 100A Continue @130A 500ms
Rated charging and discharging power 2.56kW
Peak power 5.12kW Continue @6.656kW 500ms
Short-circuit current 0.377Ka@100us
Cycle life ≥6000 Cycle, 80%DOD, 25℃
Communication mode CAN, RS485, RS232
Parallel number Recommend 6 in parallel(Max support 16 in parallel)
Remote data Bluetooth / WiFi (Optional)
Weight 49±3%Kg
Dimensions (L*W*H) mm 425*145*675mm
Operating temperature Charging:0℃~+50℃ / Discharge:-20℃~+60℃
Relative humidity 0~95%
Storage temperature <3 Months -10℃~25℃ / <1 Year 0℃~25℃
Maximum working altitude 2000m
Class of protection IP20
Supports inverter
communication brands
SMA/Growatt/TBB/Deye/GOODWE/Huawei/Schneider/Victon energy/SOFAR/INVT
Installation mode Wall hanging/Floor mounting
Power cable outlet mode Upper
Standards and certification MSDS, UN38.3
*1:Test conditions, cell voltage 2.6V~3.65V, the new battery at +25±2℃ 0.5C charging and discharging, available power may vary depending on the inverter;
*2:Rated charge and discharge current and power will change due to temperature and SOC.
